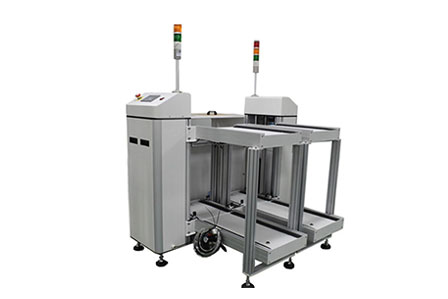

Introduction of Full-automatic Double-track Loading Machine

Brand: Senruida Intelligent Place of Origin: Jiangsu, China

It is mainly used for the source of SMT production line, the PCB board is stored transferred to the back-end equipment through the material frame.It has the function of automatic board feeding.

The board feeding method uses a stepping motor push rod to ensure that the PCB will be damaged reduce process losses.

Transmission direction: left to right; right to left (optional)

PCB conveying large size: M-TYPE 510 * 460mm (can be customized)

Frame entry method uses bottom-in top-out; effectively shortening the frame replacement time

Refueling box (magazine) time: 15-25t

Delivery time: 6-15 seconds / piece

Equipped with standard signal ports for online connection with any other equipment

Chinese operation interface is easy to learn; easy to operate

Air pressure requirement: above 0.45Mpa; clean dry

Voltage: 220V 100W

This machine is specifically designed for dual-track placement
